1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP

चीन 1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP आपूर्तिकर्ता
1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP आपूर्तिकर्ता 1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP आपूर्तिकर्ता 1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP आपूर्तिकर्ता 1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP आपूर्तिकर्ता 1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP आपूर्तिकर्ता

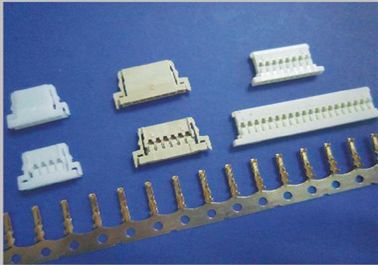

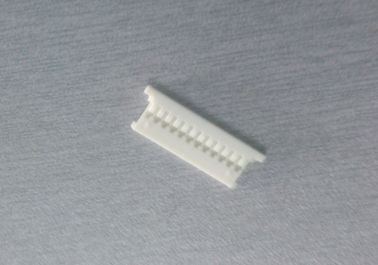

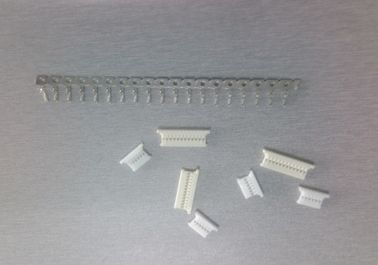

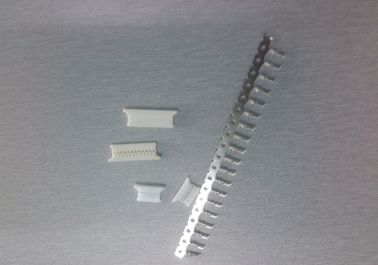

बड़ी छवि :  1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP

उत्पाद विवरण:

Place of Origin: Dongguan, China(mainland)
ब्रांड नाम: HRT
प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A1254H-NP

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 5000 pcs
मूल्य: Negotiated
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 600K pcs per month
विस्तृत उत्पाद विवरण
Category: Crimp Housings Application: Power, Wire-to-Board
Material: PA66 Wire range: AWG28# to 32#
Flammability: UL94V-0 Gender: female
हाई लाइट:

Pcb To Wire Connectors

,

Board To Wire Connectors



1, The specification of the product including basic size information, electrical and mechanical properties.



  Basic size information

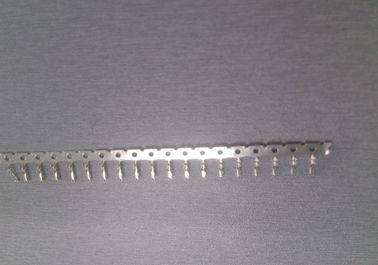

Suitable terminals A1007T series
Suitable wafer A1254 series
Pitch 1.25mm
Color white
Row single
Lock to mating part without
Circuits 2 to 30 pins
Wire insulation diameter  0.90mm Max.
Terminal materials phosphor bronze, gold-flash

                                                          Electrical properties
Current Rating: 1A AC, DC
Voltage Rating 125V AC, DC
Contact Resistance: 20mΩ Max
Insulation Resistance: 100mΩ min
Withstanding Voltage: 500V AC/minute

                                                          Mechanical properties
Temperature range -25℃ to 85 ℃
                           Other information please kindly check the following picture.



2, Related drawing and report

Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.



1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP




3, Application fied of these product



This product is developed for PDP, LCD, or small electronics equipment. Because we can controll NPL ratio under 1.15%, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.



4, we can offer various fast delivery way for you .



1.25mm pitch housing precise alternatives parts wire to board connecor type A1254H-NP



We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
