1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP

अच्छी गुणवत्ता वायर टू बोर्ड कनेक्टर्स बिक्री के लिए
अच्छी गुणवत्ता वायर टू बोर्ड कनेक्टर्स बिक्री के लिए
I could not believe the product was delivered today, that was quick. Yes, it does fit the board socket as intended.

—— Craig

The flexible MOQ & fast delivery makes me impressive

—— Oleg

the factory is wonderful, it's very clean & tidy, well done in 5S management.

—— Greg Cho

The product are wonderful. The sample is delicered very fast.

—— Peter Svedmyr

मैं अब ऑनलाइन चैट कर रहा हूँ

1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP

चीन 1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता

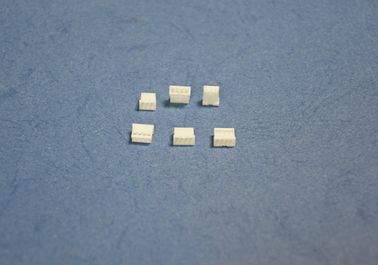

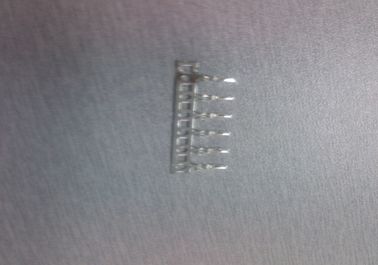

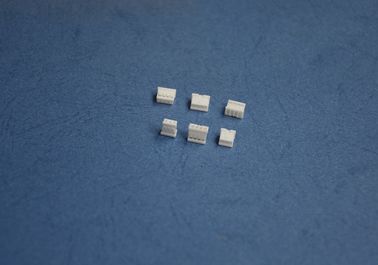

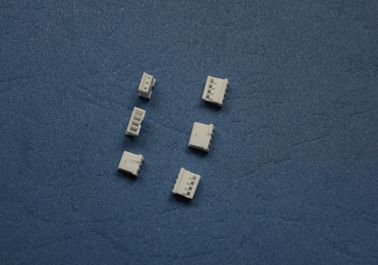

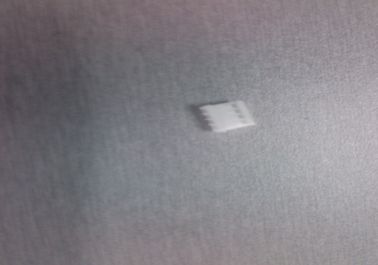

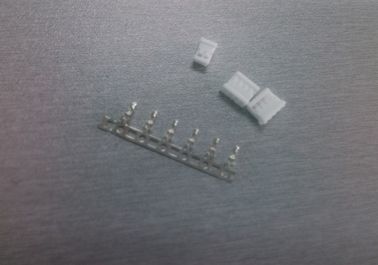

1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता 1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता 1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता 1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता 1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता 1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP आपूर्तिकर्ता

बड़ी छवि :  1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP

उत्पाद विवरण:

Place of Origin: Dongguan, China(mainland)
ब्रांड नाम: HRT
प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A1501HNP

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 5000 pcs
मूल्य: Negotiated
Packaging Details: Bag with outside carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
विस्तृत उत्पाद विवरण
Category: Crimp housings Suitable wafer: A1501W series
Suitable terminals: A1501T series Wire range: AWG22# to 28#
Lock to mating part: Without Gender: Female
हाई लाइट:

Circuit Board Connections

,

Pcb Connectors Wire To Board

1.50mm Pitch pcb wire to board connector Smt Crimp Housings Without Lock A1501HNP



1, The detailed specification



 Basic size information
Material PA66
Application signal, wire-to-board
Pitch 1.50mm
Color white
Row single
Flammability UL94V-0
Circuits 2 to 15 pins(position)
Wire insulation diameter  1.15mm Max.
Terminal materials phosphor bronze, tin-plated

                                                       Electrical characteristic
Current Rating: 3.0 A AC, DC
Voltage Rating 350 V AC, DC
Contact Resistance: 20 mΩ Max
Insulation Resistance: 1000 mΩ min
Withstanding Voltage: 500V AC/minute

                                                          Mechanical characteristic
Temperature range -25℃ to 85 ℃
                           Other information please kindly check the following picture.



2, Related drawing and report



Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.



1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP




3,FAQ



Q: Can we have our own brand packaging? How?
A: Yes,we have designer in house to meet customized packaging requirment, all you have to

do is let us know your idea or demands.



Q: Does your products print exactly the same as original?
A: Compatible products were known for its favourable prices and accurate size as originals.



Q: What is your MOQ for sample order?
A: All size sample orders are welcome.we do understand your idea to increase order



gradually.

Q: What about guarantee?
A: One on one exchange for defectives exceed our guarantee rate.





4, Delivery and payment terms



Please get a direct understanding from the attached pictures, let's do business now!

1.50mm Pitch Circuit Board Wire Connectors Smt Crimp Housings Without Lock A1501HNP
