होम उत्पादWafer Connector

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

अच्छी गुणवत्ता वायर टू बोर्ड कनेक्टर्स बिक्री के लिए
अच्छी गुणवत्ता वायर टू बोर्ड कनेक्टर्स बिक्री के लिए
I could not believe the product was delivered today, that was quick. Yes, it does fit the board socket as intended.

—— Craig

The flexible MOQ & fast delivery makes me impressive

—— Oleg

the factory is wonderful, it's very clean & tidy, well done in 5S management.

—— Greg Cho

The product are wonderful. The sample is delicered very fast.

—— Peter Svedmyr

मैं अब ऑनलाइन चैट कर रहा हूँ

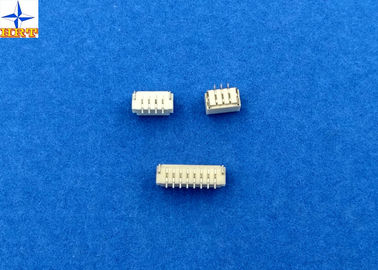

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

चीन 1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin आपूर्तिकर्ता
1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin आपूर्तिकर्ता 1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin आपूर्तिकर्ता 1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin आपूर्तिकर्ता 1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin आपूर्तिकर्ता

बड़ी छवि :  1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

उत्पाद विवरण:

Place of Origin: Dongguan, China(mainland)
ब्रांड नाम: HRT
प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A1001WV-S-NP

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 5000 pcs
मूल्य: USD0.001 to 0.005 per pcs
Packaging Details: Tube(pipe) with outside paper carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 28 million pcs per month
विस्तृत उत्पाद विवरण
Color: Black Pitch: 1.0mm
Wafer materials: PA6T, UL94V-0 Wire range: AWG32# to 28#
Packaging Type: Tube Pins material: Phosphor bronze or tin-plated
हाई लाइट:

Wafer Connector 2.0mm

,

Housing Connector

1.0mm Pitch Board To Wire Connectors , Smt Connector 180 Degree Type A1001WV



1, Detailed specification table of product



Detailed information




Basic information

Type Wafer
Circuits From 2 pins to 24 pins
Insulation O.D. 0.80mm(Max)
Mating lock None
Finish terminal Tin-plated or gold-flash
Mated housing A1001 series single row housing
Mounting methods SMT type
Wafer material  Nylon 6T, UL94V-0
Cap Nylon 6T, UL94V-0
Pin material Phosphor bronze or tin-plated
Solder tabs Brass or tin-plated

Electrical properties Current Rating 1A AC, DC
Voltage Rating 50V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 100mΩ min
Withstanding Voltage 500V AC/minute

Mechanical properties Temperature range -25℃ to 85 ℃
Terminal Insertion Force 0.50kgf (Max.)
Terminal/Housing Retention Force 0.70kgf (Min.)
Pin Retention Force 0.50kgf (Min.)
  Other information please kindly check the following picture.





2,These series product

Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

                                                       A1001 series product
Terminal A1001-T-A


Housing

Dual housing A1001H-2XNP & A1001HB-NP-1
Single housing A1001H-NP-1 & A1001H-NP-2

Wafer Dual rows type  A1001WV-S-2XNP & A1001WR-S-2XNP & A1001WV-SF-2XNP
Single row type A1001WV-S-NP & A1001WR-S-NP

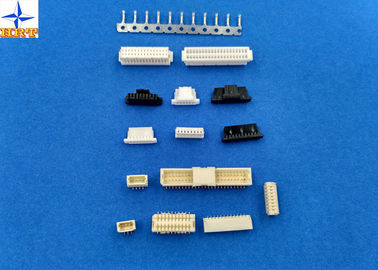

                                                                   A1001 series demo

 1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin





3,Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.



                                                                Drawing of dimension

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin







3, FAQ

1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.

2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

4) Do you have after-sales service?
Yes. 8 hours online service

5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.





4,The application of this series product
Please kindly check the below picture, you can know its' applicated range directly. Our products are mainly used in wire to wire connecting, power, Inside of some machines and some appliances, or power of PCB board. By the way, all of this series prodcut are complied with REACH, UL, RoHS srandard. In order to protect the evironment furthur, some parts are halogen free.









5, Delivery & Payment Way

We can offer multiple delivery way for you, it will let you to recieve our part in a short time. Besides, flexible payment terms are available to save the commision charges both for us.
