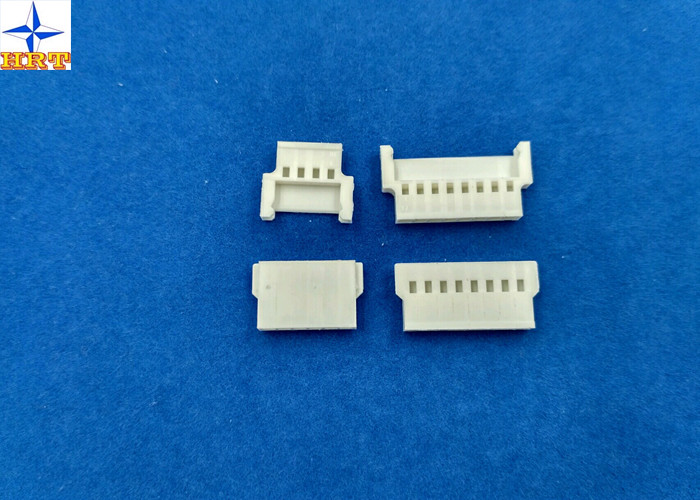

2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing

2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing

    • 2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing
    • 2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing
    • 2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing
  • 2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing

    उत्पाद विवरण:

    Place of Origin: Dongguan, China(mainland)
    ब्रांड नाम: HRT
    प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C2003HF-NP

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5000 pcs
    मूल्य: USD0.001 to 0.5 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Color: White Pitch: 2.00mm
    Materials: PBT, UL94V-0 Suitable housing: C2003HM series
    Packaging Type: Bag Application: Power, Wire-to-Wire

    2.0mm pitch housing wire to wire connector type with PA66 material halogen free parts C2003HF

    1, Specification excel of part


    Detailed information




    Basic size information

    Circuits From 2pins to 16pins
    Insulation O.D. 1.40mm(Max)
    Mating lock None
    Wire range AWG24# to 28#
    Halogen Free Nylon 66,UL94V-0
    None HF type material PBT,UL94V-0
    Matched Terminals A2003F-T series

    Electrical properties Current Rating 2A AC, DC
    Voltage Rating 125V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 500V AC/minute

    Mechanical properties Temperature range -25℃ to 85 ℃
    Terminal Insertion Force 1.50 kgf (Max.)
    Terminal/Housing Retention Force 1.20 kgf (Min.)
    Crimping Pull Out Force AWG#24   3.0 kgf (Min.)
    AWG#26   2.0 kgf (Min.)
    AWG#28  1.0 kgf (Min.)
      Other information please kindly check the following picture.





    2,  Corresponding engineering drawing & test report
    Below file is our engineering drawing and testing report for further information. It's sure that it will be a
    good reference for you to know this series parts clearly.
    2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing
    2.0mm Pitch Wire To Wire Connector, 2.00mm Pitch Wire-to-Wire Plug Housing, 51006 Crimp Housing


    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#24 3.0 kgf (Min.)
    AWG#26 2.0 kgf (Min.)
    AWG#28 1.0 kgf (Min.)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50 kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.20 kgf (Min.)
    5-5 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
    5-6 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-7 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)
