|Place of Origin:||China|
|Minimum Order Quantity:||5000 PCS|
|Packaging Details:||Carton / Paper pots|
|Delivery Time:||5 to 8 working days after payment checked|
|Payment Terms:||TT, Western Union, PayPal, L/C|
|Supply Ability:||1000 pcs per day|
|Product Name:||A2501H-NP Housing||Pitch:||2.50mm|
|suitable:||A2501 series Terminal||Material:||PA66|
|Color:||white||Fire-protection rating:||UL 94V-0|
|Mates with:||A2501 series wafer|

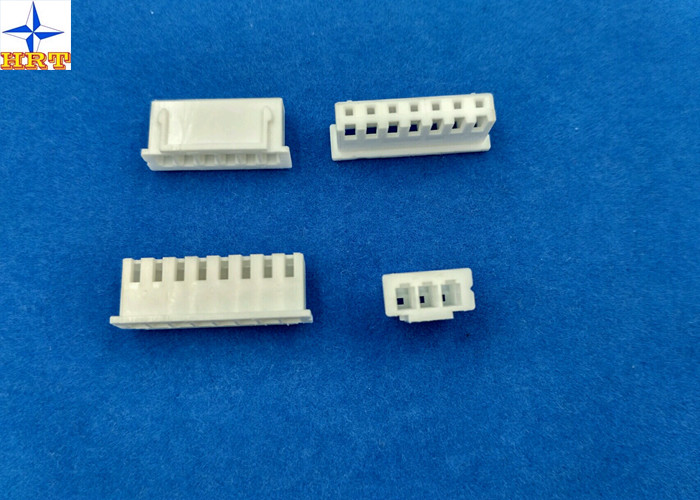

Pitch 2.50mm single row 02pin to 16pin wire to pcb connectors PA66
1. A2501 series housing A2501H-NP(suitable A2501 series Terminal )
2, Housing s’ materials: PA66, Fire-protection rating are both UL 94-V2. Minimum packing quantity is 500pcs/bag.
3. Housing we have 2Pin~16pin ,The daily production capacity is 20 to 30 KPCS.
|Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)||10mΩ (Max.)|
|Insulation Resistance||Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)||1000MΩ (Min.)|
|Dielectric Withstanding Voltage||Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)||No Breakdown.|
|Contact Resistance on Crimped Portion||Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA..||5mΩ (Max.)|
|Voltage rated||250V AC ,DC|
|Current rated||3A AC,DC|
|Insulation resistance||1000MΩ Min|
|Contact resistance||10mΩ Max|
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .
HRT Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
4. Free Samples:10~20 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair
8. kits if customers are not satisfied)
