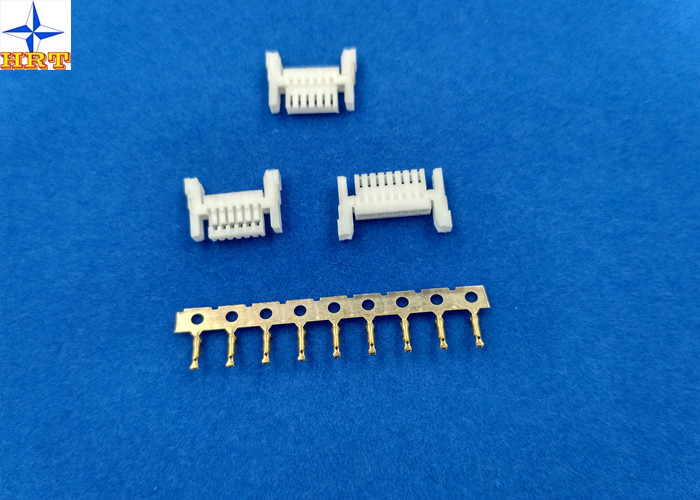

wire to board connector with B type lock 1.0mm pitch wire housing white color connector

wire to board connector with B type lock 1.0mm pitch wire housing white color connector

    • wire to board connector with B type lock 1.0mm pitch wire housing white color connector
    • wire to board connector with B type lock 1.0mm pitch wire housing white color connector
    • wire to board connector with B type lock 1.0mm pitch wire housing white color connector
  • wire to board connector with B type lock 1.0mm pitch wire housing white color connector

    उत्पाद विवरण:

    Place of Origin: Dongguan, China(mainland)
    ब्रांड नाम: HRT
    प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1005HB-NP-K

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5000 pcs
    मूल्य: negotiated
    Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required.
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Category: Wire housing Material: PA66
    Flammability: UL94V-0 Application: Signal, wire to board
    Gender: Female Circuits: 6 or 8 pins

    1, Detailed information of product

                                                  Basic dimension information
    Pitch 1.0mm
    Color White
    Row Single
    Mating lock structure With
    Wire range AWG32# to 28#
    Wire insulation diameter 0.80mm Max
    Terminal materials phosphor bronze material, tin-plated or gold -flash finish
    Terminal Package 20K pcs/reel
    Terminal processing method E-stamping before tin-plated or gold-flash
    Matched part A1005-T-K sereis terminal

                                                            Electrical properties
    Current Rating 1A AC, DC
    Voltage Rating 50V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 100mΩ min
    Withstanding Voltage 500V AC/minute

                                                           Mechanical properties
    Temperature range -25℃ to 85 ℃
    Terminal Insertion Force 0.50kgf (Max.)
    Terminal/Housing Retention Force 0.60kgf (Min.)
    Pin Retention Force 0.50kgf (Min.)

                   Other information please kindly check the following picture.



    2, Introduction for this series products & testing report

    Please kindly notice that the A1005 series product, if you can buy this product as a set, the price will be very reasonale and favorable.

    1, Terminals:A1005-T-K & A1005H-T



    2, Housing: With lock type: A1005HA-NP-K & A1005HA-NP & A1005HB-06P & A1005HB-NP-K
                      Without lock type:
    A1005H-NP-K & A1005H-NP



     wire to board connector with B type lock 1.0mm pitch wire housing white color connector

    wire to board connector with B type lock 1.0mm pitch wire housing white color connector

    wire to board connector with B type lock 1.0mm pitch wire housing white color connector



                                                                  Testing report

    3. Ratings & Applicable Wires



    Item Standard
    Rated Voltage (Max.) 50V AC/DC Insulation O.D. 0.80mm (Max.)
    Rated Current (Max.) And Applicable Wires AWG#28 1A AC/DC
    AWG#30 1A AC/DC
    AWG#32 0.5A AC/DC
    Ambient Temperature Range -25℃ ~ +85℃*

    *: Including terminal temperature rise



    4. Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 100MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#28 1.0kgf (Min)
    AWG#30 0.8kgf (Min)
    AWG#32 0.5kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.60kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.50kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



    3,FAQ



    • Q: Can we have our own brand packaging? How?

               A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.



    • Q: Does your products print exactly the same as original?

              A: Compatible products were known for its favourable prices and accurate size as originals.



    • Q: What is your MOQ for sample order?

              A: All size sample orders are welcome.we do understand your idea to increase order gradually.



    • Q: What about guarantee?

               A: One on one exchange for defectives exceed our guarantee rate.





    4, Our product family show

    Please kindly look the next picture, you can know our product range by an easy way. Our main product are wire housing, wire to board connectoor, wire to wire connector, board-in connectors, FPC/FFC connectors and more. We also can controll defective rate in a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
