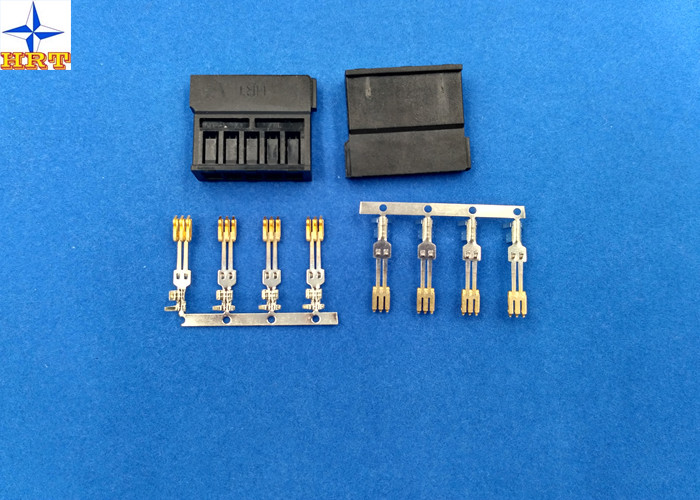

brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich

brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich

    • brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich
    • brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich
    • brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich
  • brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich

    उत्पाद विवरण:

    Place of Origin: dongguan, China(mainland)
    ब्रांड नाम: HRT
    प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A3800-T-A

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 75K PCS
    मूल्य: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 100 million pcs per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Pitch: 1.27mm wire range: AWG#18 - #22
    Material: Phosphor Bronzne Finish: Gold-plated
    Connector Type: wire connnector Terminal Insulation O.D: 2.10mm(Max)

    Signal Wire To PCB Connectors 1.27mm Ptich Gold - Plated A3800-T-A



    1, The specification of the product including basic size information, electrical and mechanical properties.



    Basic size information
    Termination Interface Style crimp or compression
    Processing methods E-stamping before gold-plated
    Insulation O.D. 2.10mm(Max)
    Part No. A3800-GPE-A
    Application signal

    Electrical properties
    Current Rating 1.5A AC, DC
    Voltage Rating 15V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 500V AC/minute

    Mechanical properties
    Temperature range -25℃ to 85 ℃
    Other information please kindly check the following picture.






    2, Related drawing and report



    The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!

    brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich

    brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich

    brass material Gold - Plated Signal Wire To PCB crimp Connectors terminals with 1.27mm Ptich

    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#18 6.0 kgf (Min.)
    AWG#20 5.0 kgf (Min.)
    AWG#22 4.0 kgf (Min.)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.80 kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00 kgf (Min.)
    5-5 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
    5-6 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-7 Physical Shock

    490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Insulation Resistance 100MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
    6-7 Solder-ability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-8 Resistance to Soldering Heat

    Solder pot method

    Soldering time: 10±0.5 sec.

    Solder Temperature: 260±5℃

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    3, FAQ


    Q:Do you allow multiple design per setup?
    A:Yes.We accept OEM/ODM service and allow multiple design per setup.

    Q:How long does shipping take?
    A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

    Q: How is the goods packaged ?
    A: Usually in PE bads, tube, pipe and with outside carton box.



    4, we can offer multiple, safe and fast shippment for you!

    We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
