| Place of Origin: | Dongguan, China(mainland) |
| ब्रांड नाम: | HRT |
| प्रमाणन: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2211H2XNP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| मूल्य: | negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Color: | white | Pitch: | 2.00mm |
|---|---|---|---|
| Material: | PA66 | Flammability: | UL94V-0 |
| Wire range: | AWG28# to 22# | Row: | dual |
| हाई लाइट: | Pcb To Wire Connectors,Board To Wire Connectors |
||

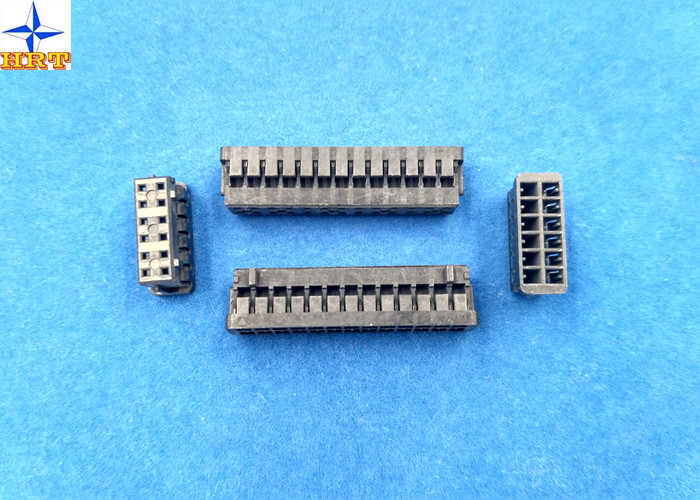

Dual Row 2.00mm Pitch Connector Wire To Board Connectors Crimping Housing
1, The specification of the product including basic size information, electrical and mechanical properties.
| Basic size information | |||
| Suitable terminals | A2211 series | ||
| Mating lock | without | ||
| Wire Termination Method | crimping | ||
| Circuits | 4 to 40 pins | ||
| Wire Insulation Diameter | 1.40mm Max. | ||
| Mounting side | standard on-Board | ||
| Terminals material | phosphor bronze; tin-plated finish | ||
| Terminal handling method | E-stamping before tin-plated | ||
| Electrical properties | |||
| Current Rating | 2A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 30mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 800V AC/minute | ||
| Mechanical properties | |||
| Operating temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#22 | 4.0kgf (Min) |
| AWG#24 | 3.0kgf (Min) | |||
| AWG#26 | 2.0kgf (Min) | |||
| AWG#28 | 1.0kgf (Min) | |||
| AWG#30 | 0.8kgf (Min) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.50kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 1.50kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 1.50kgf (Min.) | |
| 5-6 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 40mΩ (Max.) | |
| 5-7 | Vibration |
Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.) |
|
| 5-8 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||
Actuator Insertion/Withdrawal Force
[Unit : kgf]
| Circuits | At Initial | Circuits | At Initial | ||
| Insertion (Max.) | Withdrawal (Min.) | Insertion (Max.) | Withdrawal (Min.) | ||
| Single | 0.50 | 0.05 | 2x 11 | 5.40 | 2.40 |
| 2x02 | 1.40 | 0.50 | 2x 12 | 5.80 | 2.60 |
| 2x03 | 1.80 | 0.80 | 2x 13 | 6.20 | 2.80 |
| 2x04 | 2.20 | 1.00 | 2x 14 | 6.60 | 3.00 |
| 2x05 | 2.60 | 1.20 | 2x 15 | 7.00 | 3.20 |
| 2x06 | 3.00 | 1.40 | 2x 16 | 7.40 | 3.40 |
| 2x07 | 3.40 | 1.60 | 2x17 | 7.80 | 3.60 |
| 2x08 | 3.80 | 1.80 | 2x18 | 8.20 | 3.80 |
| 2x09 | 4.20 | 2.00 | 2x19 | 8.60 | 4.00 |
| 2x10 | 5.00 | 2.20 | 2x20 | 9.00 | 4.20 |
3, Main customer
Our product are developed for PDP, LCD, or small electronics equipment. The parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare etc because of its' low NPL ratio. By the way, the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
4, Our service
MOQ: If have stock, according to the smallest package. If not, according to the produce MOQ.
R&D ability:ODM&OEM is avaiable. We also can help you design molds and produce products.
Delivery time: 5 to 8 days according to your order amount.
Quality Control: Original connector or replace connector we'll be 100% inspected before
dispatching.
Package:PE Bag or Nylon Bag with Carton or as required
