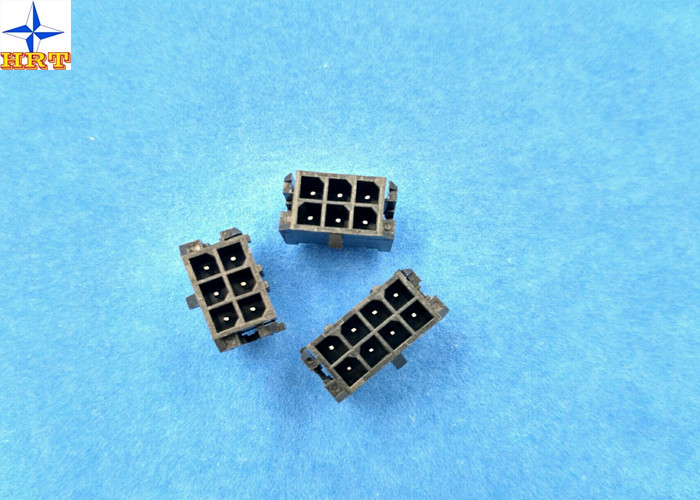

3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header

3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header

    • 3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header
    • 3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header
    • 3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header
  • 3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header

    उत्पाद विवरण:

    Place of Origin: Dongguan, China(mainland)
    ब्रांड नाम: HRT
    प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C3030WV-F-2XNP

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5000 pcs
    मूल्य: USD0.001 to 0.005 per pcs
    Packaging Details: Tube(pipe) with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1.5 million pcs per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Color: Black Pitch: 3.0mm
    Wafer materials: PBT, UL94V-0 Wire range: AWG24# to 20#
    Packaging Type: Tube(Pipe) Suitable housing: C3030HF series dual row
    हाई लाइट:

    Circuit Board Connectors


    PCB To PCB Connector

    1, Detailed specification of product:


    Detailed information









    Basic information

    Type Wafer connector
    Gender Female
    Circuits 2 to 24 positions
    Insulation O.D. 1.85mm(max)
    Mating lock With
    Pin materials Brass or tin-plated
    Wafer material PBT,UL94V-0
    Matched housing C3030HF dual row series
    Mounting type Vertical(180 degree)
    Application Power, wire to wire
    Terminal materials Phosphor bronze
    Finish terminal Tin-plated or gold-flash type
    Terminal Package 10K pcs/reel
    Terminal processing method E-stamping before tin-plated



    Electrical properties

    Current Rating 5A AC, DC
    Voltage Rating 250V AC, DC
    Contact Resistance 10mΩ Max
    Insulation Resistance 1000mΩ Min
    Withstanding Voltage 1500V AC/minute



    Mechanical properties

    Temperature range -25℃ to 85 ℃
    Terminal Insertion Force 1.50kgf (Max.)
    Terminal/Housing Retention Force

    2.50kgf (Min.)

    Pin Retention Force 1.50kgf (Min.)
    Latch Yield Strength 7.0kgf (Min.)
    Other information please kindly check the following picture.



    2, Introduction for this series products

    Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.


    C3030 series product
    Terminal C3030F-T-A and C3030M-T
    Connector Male housing C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP
    Female housing C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP



    Vertical type C3030WV-F-NP &C3030WV-F-2XNP
    Right angle type C3030WR-F-XP & C3030WR-F-2XNP



    3, Corresponding engineering drawing & test report

    Below file is our engineering drawing and testing report for further information. It's sure that it will be a

    good reference for you to know this series parts clearly.

                                                                 Drawing of dimension

    3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header

    Mechanical Performance


    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#20 6.0kgf (Min.)
    AWG#22 4.0kgf (Min.)
    AWG#24 3.0kgf (Min.)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 2.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
    5-6 Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of

    25±3mm / minute

    7.00kgf (Min.)
    5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-8 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



    4, Why choose us

    Our Quality: Quality is the life of HRT. We use only the best quality (original) materials to ensure the standard of our product. All products we sold out are strictly selected and tested by our QC department.


    Warranty:We provide comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you have any question.


    Payment:We accept payment via TT (Bank transfer), PayPal, Western Union, L/C. We accept bank transfer for large orders. For small order, it's better for you to pay via T/T or Western union.


    Shipping:We offer as many shipping options as possible, including DHL, UPS, FedEx, TNT and EMS.


    5, Our service

    We can offer multiple and flexible payment and delivery terms to save your money & shipping time. I hope

    we have long-term & firm business relationship and personal friendship

    3.0mm Pitch Board In Connector, Wafer Connector Tin-Plated Foot Dual Row Header
