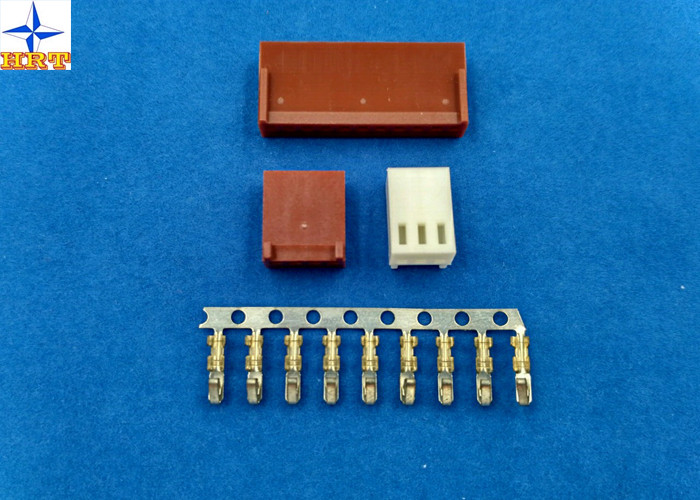

One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins

One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins

    • One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins
    • One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins
    • One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins
  • One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins

    उत्पाद विवरण:

    Place of Origin: Dongguan, China(mainland)
    ब्रांड नाम: HRT
    प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2542H-NP

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5000 pcs
    मूल्य: Negotated
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 600K pcs per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Color: light-yellow Pitch: 2.54mm
    Material: Nylon66 Flammability: UL94V-2
    Mating lock: None Row: single
    हाई लाइट:

    PCB Battery Connector

    ,

    6 Pin Connector

    1,  Detailed Datasheet of product


    Basic size information
    Suitable terminalsA2542T series
    Mount typeNot on board
    Wire rangeAWG22# to 28#
    Circuits2pins to 20pins
    Wire Insulation Diameter 1.57mm Max.
    Part No.A2542H-NP

                                                Electrical properties
    Current Rating4A AC, DC
    Voltage Rating250V AC, DC
    Contact Resistance10mΩ Max
    Insulation Resistance1000mΩ min
    Withstanding Voltage1000V AC/minute

                                                 Mechanical properties
    Temperature range-25℃ to 85 ℃
              Other information please kindly check the following picture.



    2, Related drawing and report

    The following data is for your refernce, it will be a good tools for you to understand our products.
    One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins
    One Row Wire To Board Battery Connector 2.54mm Pitch From 2pins To 20pins
    Mechanical Performance


    Test DescriptionProcedureRequirement
    5-1Actuator Insertion & Withdrawal ForceInsert and withdraw connectors at the speed rate of 25±3mm / minute.Refer to paragraph 7-2
    5-2Crimping Pull Out ForceFix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)AWG#243.0kgf (Min)
    AWG#262.0kgf (Min)
    AWG#281.0kgf (Min)
    AWG#300.8kgf (Min)
    5-3Terminal Insertion Force.Insert the crimped terminal into the housing.1.00kgf (Max.)
    5-4Terminal/Housing Retention Force.Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.2.00kgf (Min.)
    5-5Pin Retention ForceApply axial push force at the speed rate of 25±3mm / minute1.50kgf (Min.)
    5-6DurabilityWhen mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.Contact Resistance 20mΩ (Max.)
    5-7Vibration

    Amplitude: 1.5mm P-P
    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.
    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.
    Contact Resistance 20mΩ (Max.)
    Discontinuity 1 μsec.(Max.)

    5-8Physical Shock490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)


    3, Our Service

    Our Quality: Quality is the life of HRT. We use only the best quality (original) materials to ensure the standard of our product. All products we sold out are strictly selected and tested by our QC department.

    Warranty:We provide comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you have any question.

    Payment:We accept payment via TT (Bank transfer), PayPal, Western Union, L/C. We accept bank transfer for large orders. For small order, it's better for you to pay via T/T or Western union.

    Shipping:We offer as many shipping options as possible, including DHL, UPS, FedEx, TNT and EMS.
