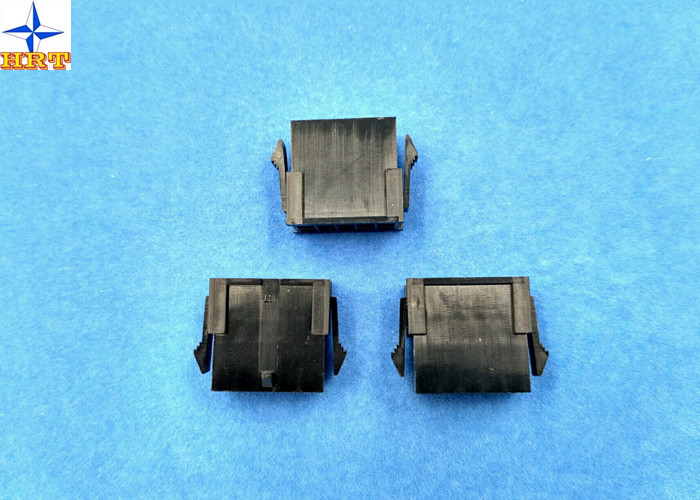

Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock

Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock

    • Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock
    • Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock
    • Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock
  • Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock

    उत्पाद विवरण:

    Place of Origin: Dongguan, China(mainland)
    ब्रांड नाम: HRT
    प्रमाणन: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C3030HM-2XNP

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 5000 pcs
    मूल्य: USD0.001 to 0.5 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    Color: Black Application: Power, Wire-to-Wire
    Materials: Nylon66 Wire range: AWG24# to 20#
    Max positions: 24 circuits Mated terminals: C3030M series

    1, Detailed part information as below

    1. Basic information:

    • Color: Black
    • Housing Material: PA66
    • Flammability: 94V-0/2
    • Pitch: 3.00mm
    • Circuits: 2 to 24 positions
    • Row No.: Dual or double
    • Insulation O.D.: 1.85mm max
    • Mounting type: wire to wire
    • Application: Power, wire to wire
    • Terminal materials: Phosphor bronze
    • Finish terminal: Tin-plated or gold-flash
    • Terminal Package: 10Kpcs/reel
    • Suitable terminal: C3030M series
    • Suitable parts: C3030HF series dual row housing
    • Terminal processing method: E-stamping before tin-plated



    2. Electrical characteristic:

    • Current Rating: 5A AC DC
    • Voltage Rating: 250V AC, DC
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000mΩ
    • Withstanding Voltage: 1500V AC/minute



    3. Mechanical characteristic:

    • ​​Temperature Range:-25°C ~+85°C
    • Terminal Insertion Force: 1.50kgf (Max.)
    • Terminal/Housing Retention Force: 2.50kgf (Min.)
    • Pin Retention Force: 1.50kgf (Min.)
    • Latch Yield Strength: 7.0kgf (Min.)



                              Other information please kindly check the following picture.


    2, Introduction for this series products

    Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.

                                                                 C3030 series product
      Terminal C3030F-T-A and C3030M-T

      Connector Male housing C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP
    Female housing C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP




    Wafer


    Vertical type C3030WV-F-NP &C3030WV-F-2XNP
    Right angle type C3030WR-F-XP & C3030WR-F-2XNP




    3, Related engineering drawing & testing report

    Below file is our engineering drawing and testing report for further information. It's sure that it will be a

    good reference for you to know this series parts clearly.

                                                                          Dimension drawing

    Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock

                                                                              Testing report

    The attached pictures can let you know the performance of this product well. You will make your decision quickly via it.

    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#20 6.0kgf (Min.)
    AWG#22 4.0kgf (Min.)
    AWG#24 3.0kgf (Min.)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 2.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
    5-6 Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of

    25±3mm / minute

    7.00kgf (Min.)
    5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-8 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





    4, Our main customer and partner

    It's no doubt that you can trust us like the world class 500 enterprise. It's sure that we will regard you as well as them, to support our best service and products. So please contact me directly, we are waiting for you. Come on!

    Dual Row Female Wafer Wire To Wire Connectors 3.0mm Pitch Housing With Lock
